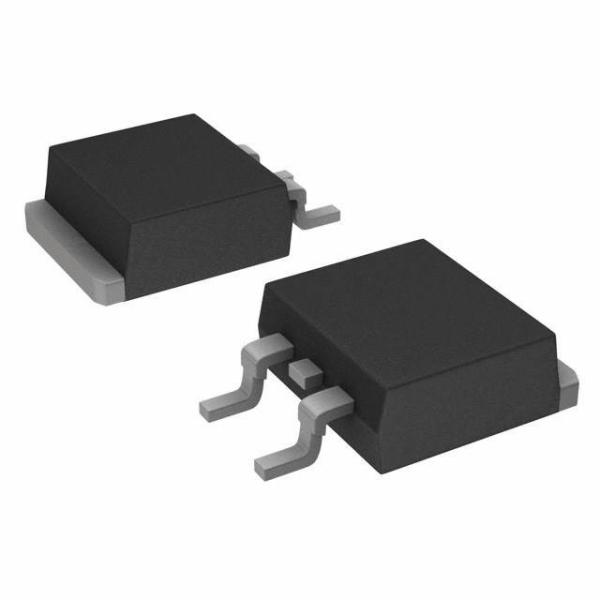

SGB15N60HSATMA1 IGBT Power Module Transistors IGBTs Single

Product Categories

KZ TECHNOLOGY (HONGKONG) LIMITED

Contact Now

Part Number : SGB15N60HSATMA1

Manufacturer : Infineon Technologies

Description : IGBT 600V 27A 138W TO263-3

Category : Transistors - IGBTs - Single

Family : Transistors - IGBTs - Single

Place of Origin : Original

MOQ : Negotiable

Price : Negotiable

Delivery Time : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Contact Now

Part Status	Obsolete
IGBT Type	NPT
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	27A
Current - Collector Pulsed (Icm)	60A
Vce(on) (Max) @ Vge, Ic	3.15V @ 15V, 15A
Power - Max	138W
Switching Energy	530µJ
Input Type	Standard
Gate Charge	80nC
Td (on/off) @ 25°C	13ns/209ns
Test Condition	400V, 15A, 23 Ohm, 15V
Reverse Recovery Time (trr)	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	PG-TO263-3
Shipment	UPS/EMS/DHL/FedEx Express.
Condtion	New original factory.

Detection

SGB15N60HSATMA1 IGBT Power Module Transistors IGBTs Single
